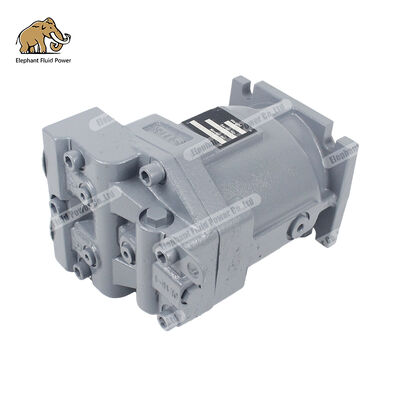

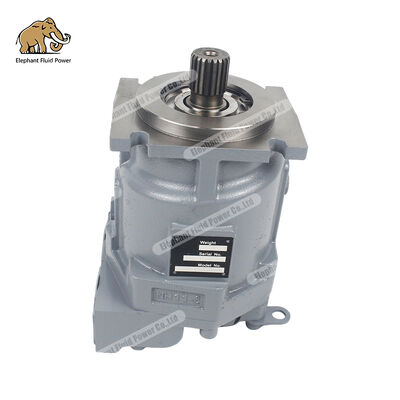

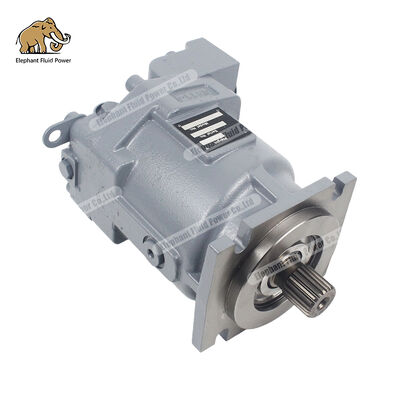

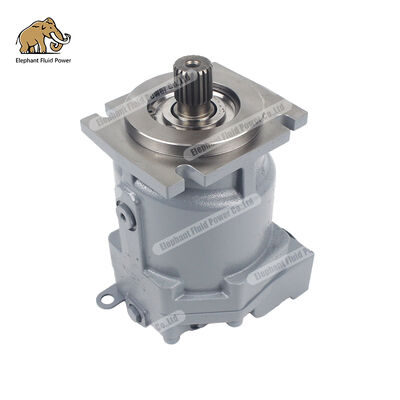

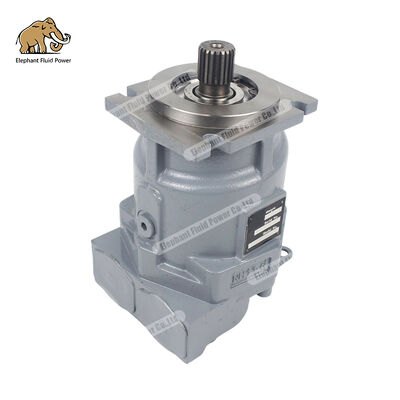

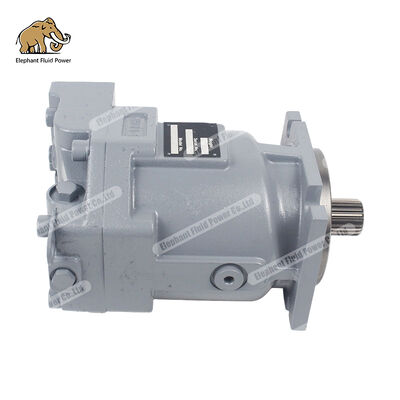

AMF075 hydraulic motor, a closed-system fixed displacement motor used in agricultural machinery and petroleum machinery.

AMF075V40AABB20000000 Hydraulic Motor

Alternative for Fixed Displacement Motors in Closed-Loop Systems

I. About the AMF075V40AABB20000000 Closed-Loop Hydraulic Motor

The AMF075V40AABB20000000 is an axial piston fixed displacement hydraulic motor specifically designed for closed-loop hydraulic systems. It is widely used in construction machinery, engineering machinery, mining machinery, agricultural machinery, and petroleum machinery.

The AMF series offers seven specifications: 028, 032, 045, 063, 075, 090, and 110. The 75cc/r displacement is the most widely applicable and mainstream model in this series. Rated pressure is 350 bar, maximum pressure is 420 bar, maximum torque is 477 Nm, maximum speed is 2900 rpm, weight is 28 kg, and it can withstand extreme ambient temperatures from -40℃ to 55℃.

II. Why do I need it? How common are closed-loop hydraulic system failures?

In hydraulic system failures of construction machinery, hydraulic pump/motor malfunctions account for a large proportion. The unique characteristics of closed-loop systems are:

① Once the system fails, the entire equipment is paralyzed.

Open systems can still operate at low speeds with some difficulty, while closed-loop systems are completely rendered unusable.

② Maintenance is difficult and time-consuming.

Closed-loop systems have high pressure levels and precision components, requiring extremely high levels of technical expertise and spare parts availability for maintenance.

③ What are the losses from a one-hour downtime?

This is the loss due to equipment downtime. If it's a contracted project, with penalties calculated daily, the losses are even more difficult to estimate.

III. How to troubleshoot common AMF075 faults?

Based on the characteristics of closed-loop axial piston motors, common faults and troubleshooting logic are as follows:

Problem 1: Motor does not rotate or rotates too slowly

Troubleshooting steps:

Check if the system oil replenishment pressure is normal (generally should be higher than 15 bar)

Check if the suction filter element is clogged

Check if the control oil circuit has built up pressure

If the above are normal, disassemble and inspect the distributor plate for wear.

Problem 2: System pressure cannot be built up

Troubleshooting steps:

Check if the relief valve core is stuck or if the spring is fatigued

Check if the replenishment pump is working properly

If the volumetric efficiency is less than 80%, it indicates severe wear of the piston assembly or distributor plate.

Problem 3: Abnormal noise or excessive vibration from the motor

Troubleshooting steps:

Check if air has entered the closed system

Check the cleanliness of the oil

Check the bearing wear

Problem 4: External oil leakage

Troubleshooting steps:

Check if the shaft end seal is aged

Check if the bolt torque at the mating surface meets the standard

Check if the back pressure at the drain port exceeds the standard (the housing pressure should be ≤2.5 bar) (bar)

Question 5: Abnormal Oil Temperature Increase

Troubleshooting Steps:

Check if the flush valve flow rate is normal (flushing pressure should be 11~13 bar)

Check if the cooler is blocked

Check if the oil viscosity is within the optimal range of 16~36 mm²/s

Check if the system has been operating under overpressure for a long time

IV. A Number to Tell You Why Purchase from China

Assuming you are an engineering machinery dealer:

Original AMF075 imported part price: Approximately 2,500 - 3,570 usd

Chinese alternative product price: Approximately 700 - 1,400 usd

The price difference is significant. But customers will say, "If it's so cheap, can it work well?"

We offer a one-year warranty. Every product undergoes pressure resistance testing, leakage testing, and performance verification before leaving the factory. Key parameters are completely accurate: pressure 420 bar, torque 477 Nm, speed 2900 rpm, not a fraction off.

Displacement 75 cc/r, weight 28 kg, SAE standard mounting interface, fully interchangeable with original equipment manufacturer (OEM) parts. Supported by China's mature hydraulic industry cluster, the overall cost of products of equivalent quality is 40%-60% lower than that of European and American suppliers.

V. What else can you get from me?

Distributors:

• Obtain parts at 30%-50% of the price of OEM parts, significantly increasing profit margins.
• MOQ as low as 1-5 units, trial orders first, then bulk orders, zero-inventory model supported.
• One-year warranty, on-demand technical support.

OEM Manufacturers:

• OEM/ODM customization supported.
• 15% discount for bulk purchases of 50 units or more.
• Complete factory inspection report provided with goods.

Repair Service Providers:

• Saving customers 50%-70% on repair costs by using replacement parts.
• Urgent orders can be shipped within 24 hours.
• Providing repair kits, plungers, distributor plates, and other repair parts.
•


VI.  Motor details

Thoughts on Downtime Costs:

A day of equipment downtime at the construction site can cost thousands of dollars. Is it worth waiting three months for equipment due to high prices and slow delivery of original parts?

We are a hydraulic motor manufacturer in China, providing AMF series alternatives. The parameters and interfaces match; the only difference is the price.

Contact us anytime. Provide your equipment model, and we can provide a suitable alternative.
